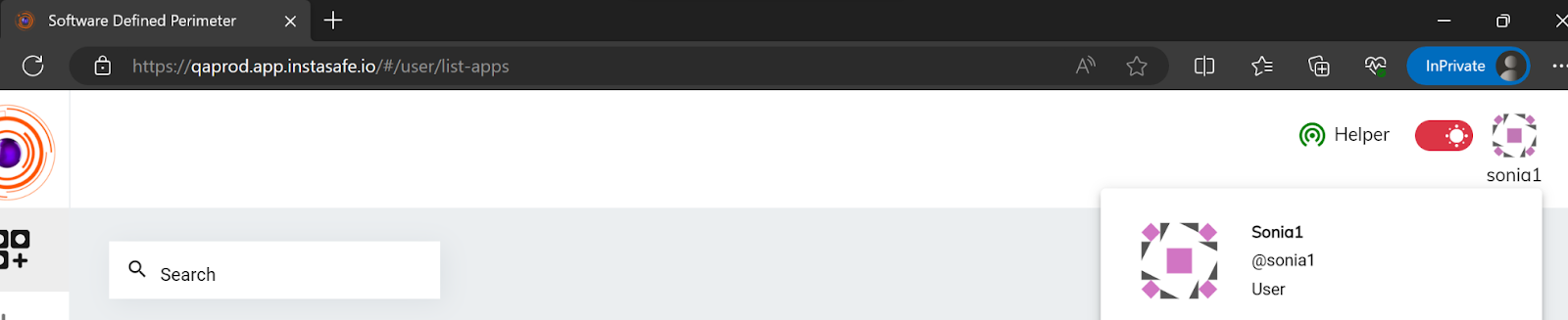

Log into ZTAA via SSO

ZTAA as SP and Azure AD as IDP – SAML Configuration

Instasafe ZTAA can function as both an Identity Provider (IDP) and a Service Provider (SP). This article demonstrates how to configure ZTAA as a Service Provider and integrate it with Azure AD as an Identity Provider using SAML-based SSO.

What is SAML SSO?

SAML (Security Assertion Markup Language) is an XML-based standard for exchanging authentication data between an Identity Provider (IDP) and a Service Provider (SP). It allows for Single Sign-On (SSO), enabling users to access multiple applications with a single login.

SSO simplifies access management by reducing the number of login prompts.
ZTAA SSO supports integration with multi-factor authentication (MFA) for enhanced security.

Key Concepts

Term	Definition
Identity Provider (IDP)	Authenticates users and provides assertions to the service provider. Azure AD is the IDP here.
Service Provider (SP)	Consumes SAML assertions to authenticate users. ZTAA acts as the SP in this configuration.
Assertion Consumer Service (ACS)	Receives and validates SAML assertions sent by the IDP.
Entity ID	Unique identifier for a SAML application.

Logging into ZTAA via Azure SSO

Setting	SP-Initiated	IDP-Initiated	Description
Entity ID	Required for some apps	Required for some apps	It uniquely identifies the ZTAA application. Azure AD sends it as the Audience in the SAML token, and ZTAA validates it. It also serves as the Entity ID.
ACS URL	Required	Required	Redirect URL where ZTAA receives SAML token from Azure.
Sign-on URL	Required	Optional	This URL is used by Azure AD to initiate sign-in when launching the app from Microsoft 365 or My Apps. If left blank, Azure AD performs an IdP-initiated sign-on from those sources.

ZTAA as SP and Azure AD as IDP: Flow Summary

User Access Request → User attempts to access ZTAA-protected resource.
ZTAA Redirects → Redirects user to Azure AD login.
User Authentication → User logs in via Azure AD.
SAML Assertion Generation → Azure AD sends user identity details in SAML token.
Assertion Validation → ZTAA validates the SAML token.
Authorization → ZTAA grants access if user is authorized.
Access Granted → User gains access to the application.

Steps to Configure

Azure AD Configuration

Login to Azure Portal → https://portal.azure.com
Go to Azure Active Directory > Enterprise Applications

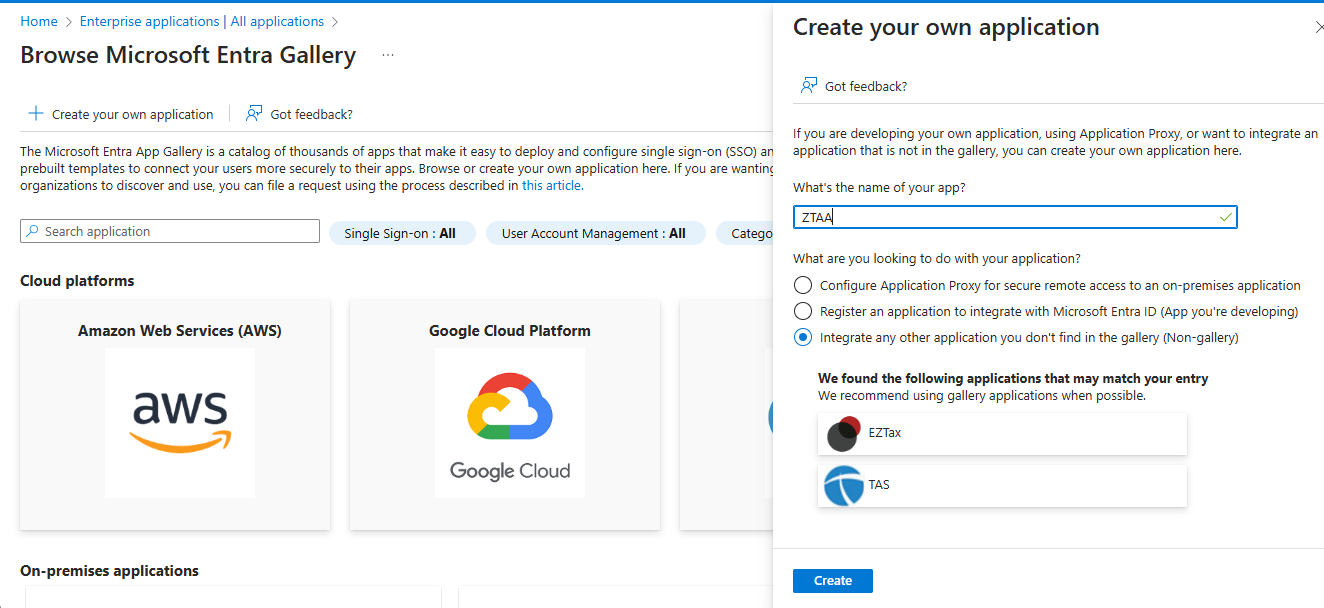

Click + New Application → Select Create your own application
Name the app (e.g., Instasafe ZTAA) and click Create
Under Manage > Properties, save the Access URL

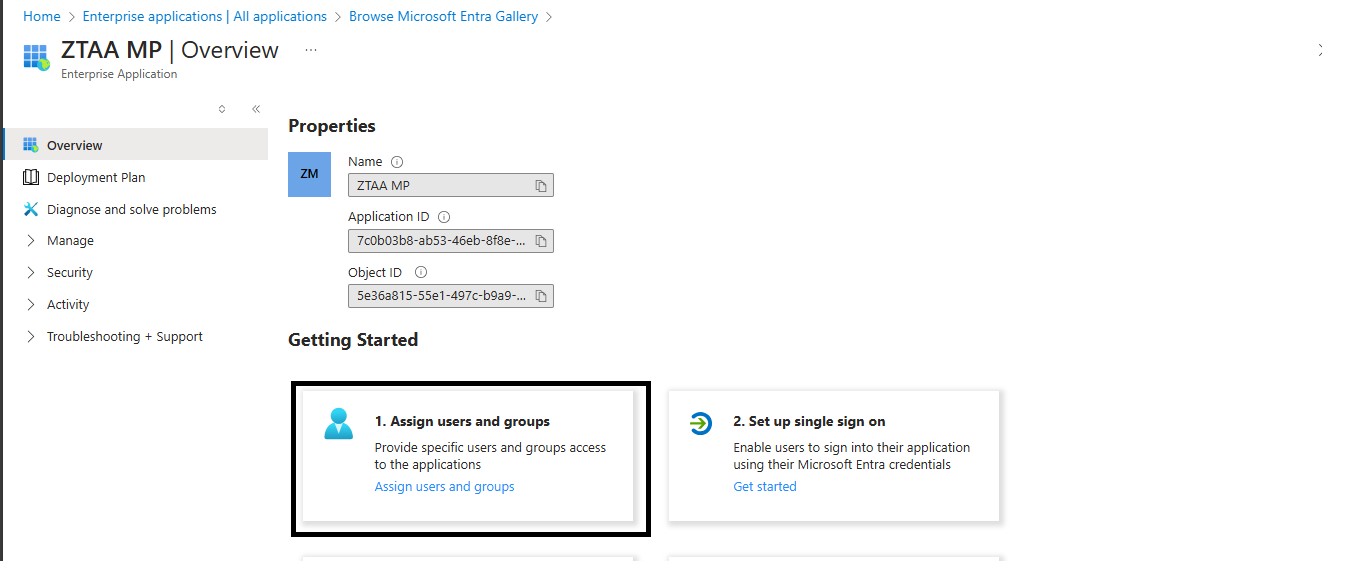

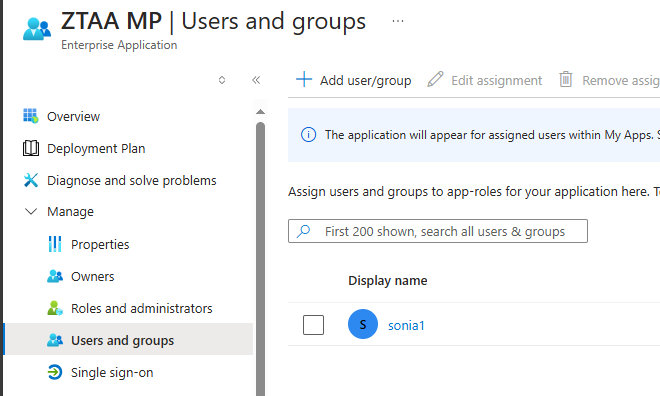

Go to Users and Groups and assign users or groups

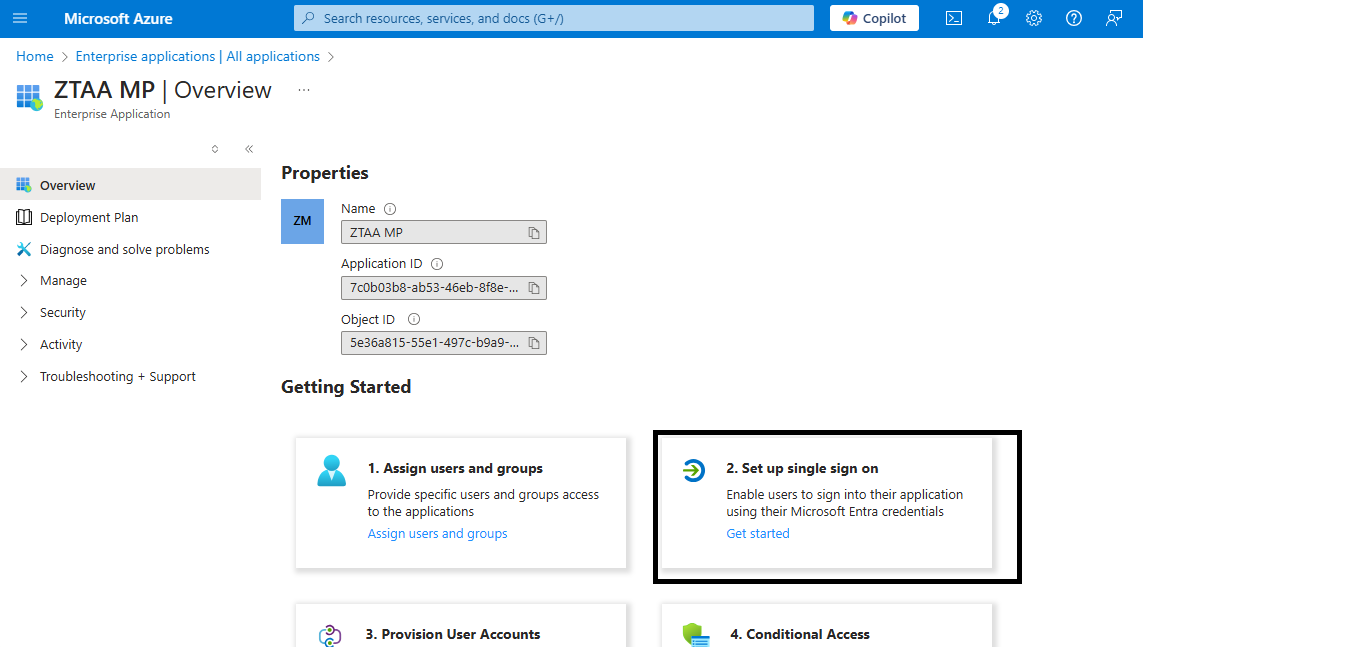

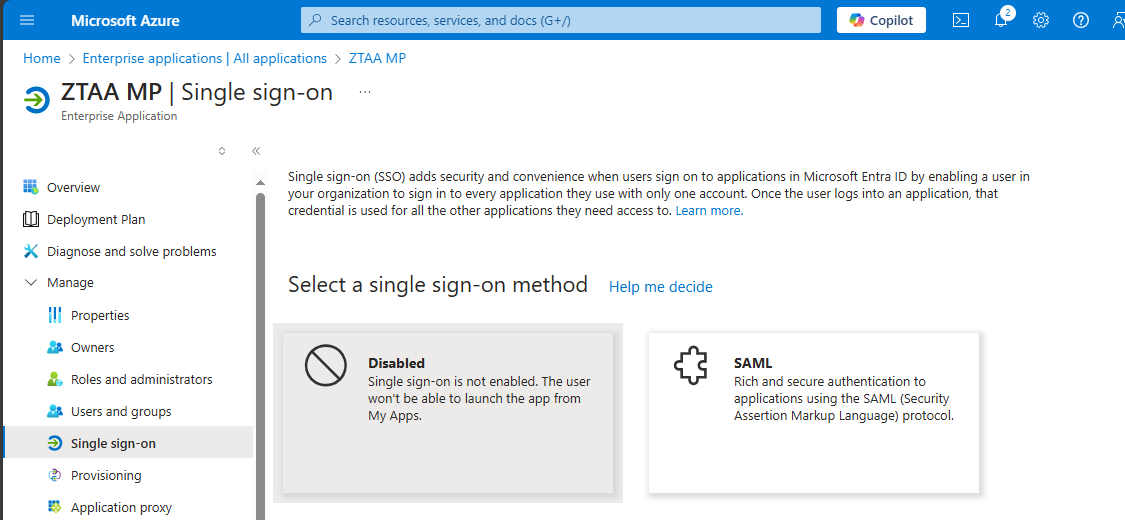

Go to Single sign-on > SAML

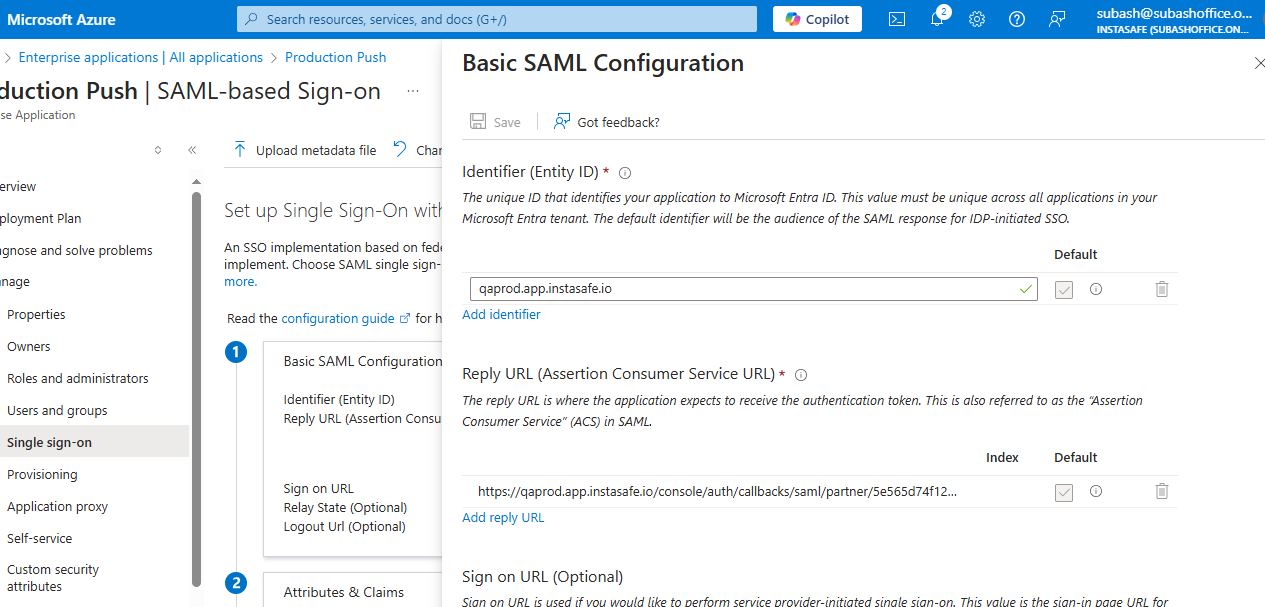

Basic SAML Configuration

Field	Value / Source
Entity ID	Enter a unique string (e.g., `https://ztaainstasafe/entity`)
ACS (Reply) URL	Copy this from ZTAA console
Sign-on URL	ZTAA login page URL (optional for IDP-initiated login)

![ ](../static/ztaa/ztaa-sso-sso-setup.png)

User Attributes & Claims
- Ensure the value for NameID or email claim is set to: user.mail

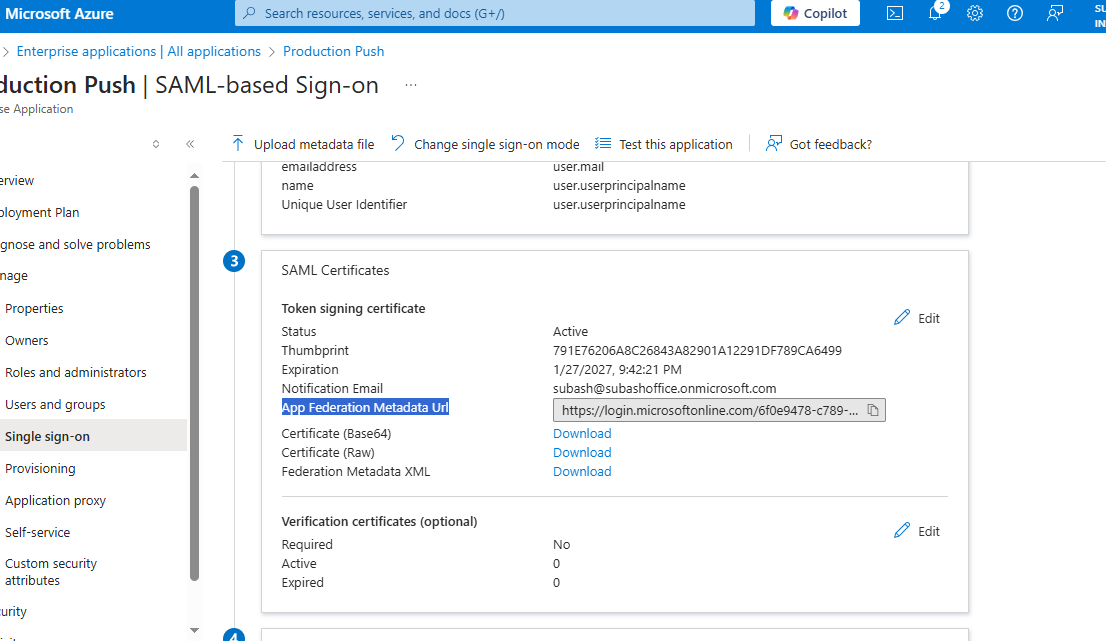

SAML Signing Certificate
- Download the Base64 certificate
- Copy the App Federation Metadata URL

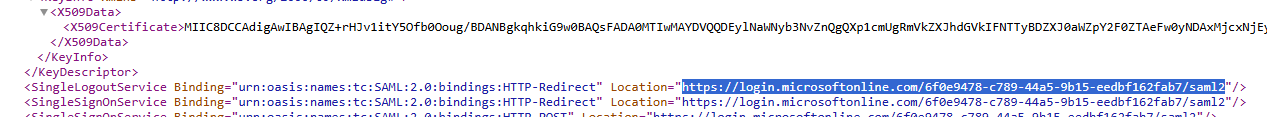

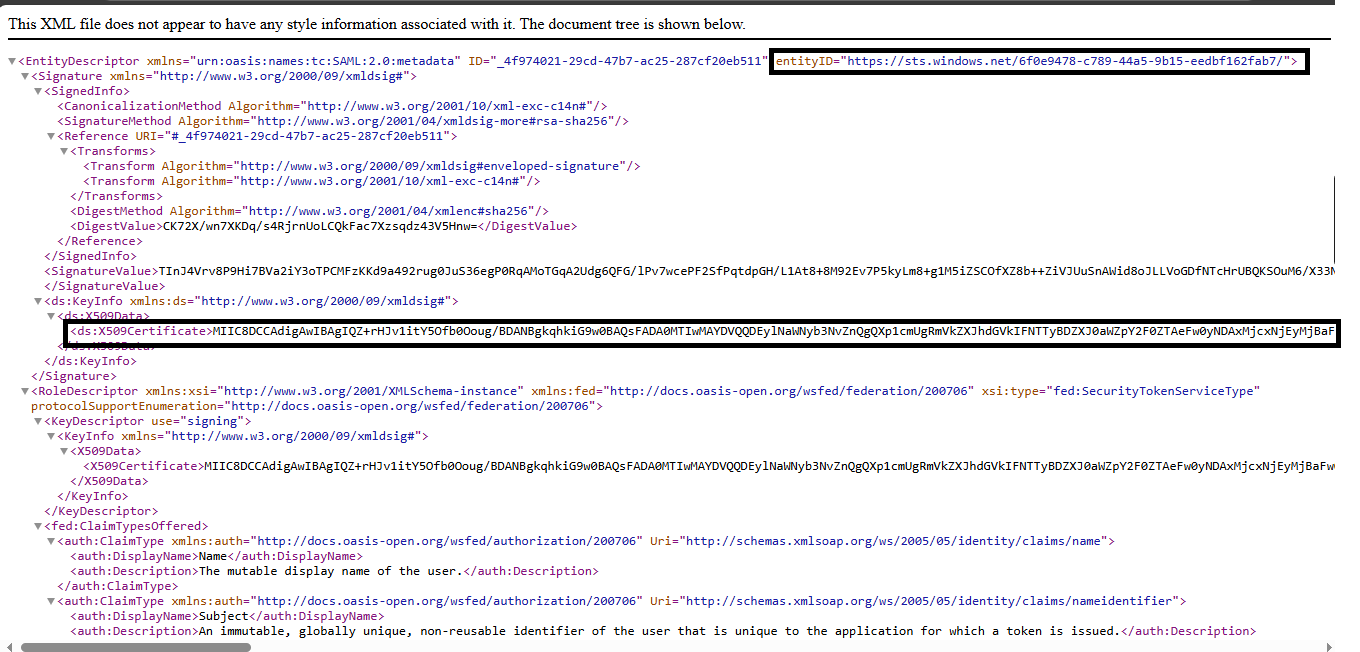

- Open the URL in browser and extract:
  - IDP Entity ID
  - SSO Login URL
  - Certificate (X.509)

ZTAA Configuration

Login to ZTAA Console as administrator

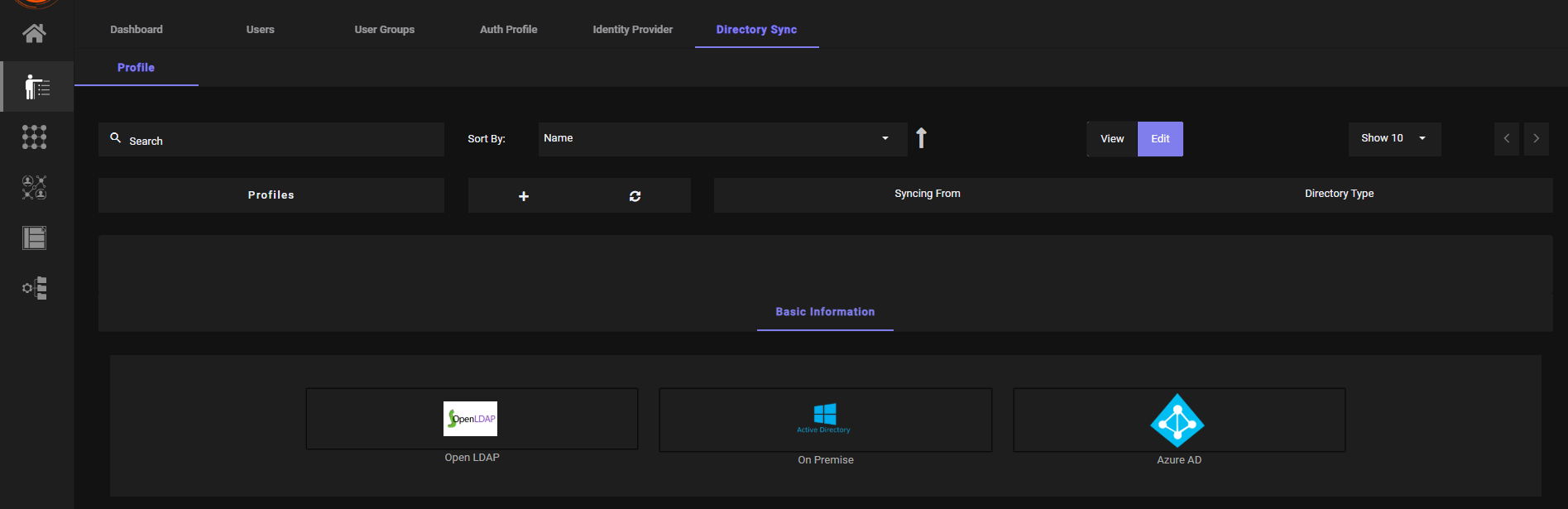

Navigate to Identity Management > Directory Sync Profile > Azure Profile
Add Azure Group to Profile and click Sync
Navigate to Auth Profile

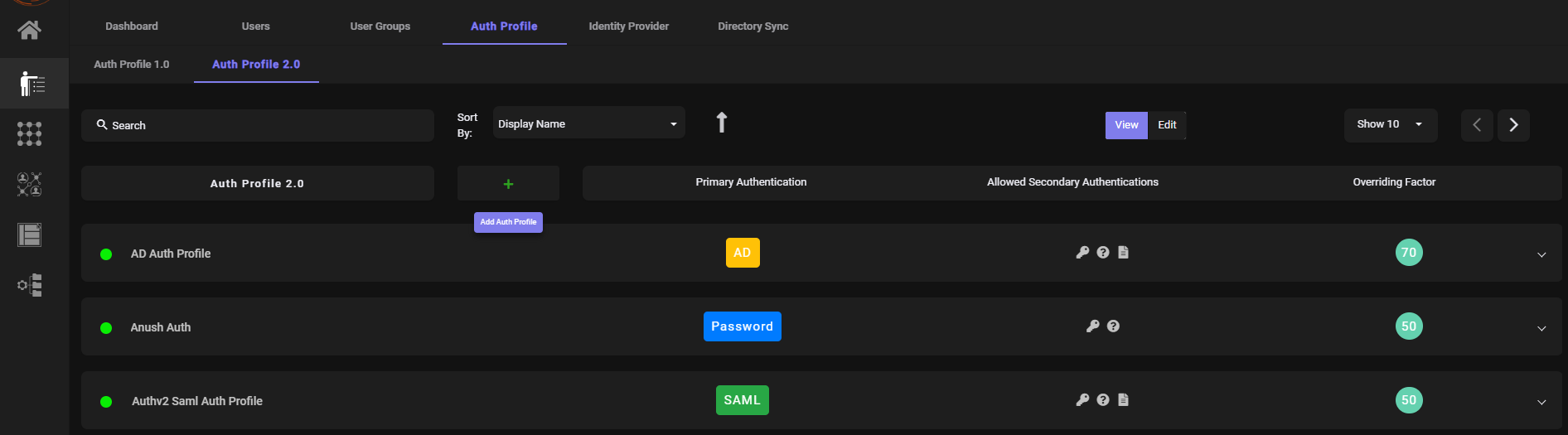

Click Add New Profile

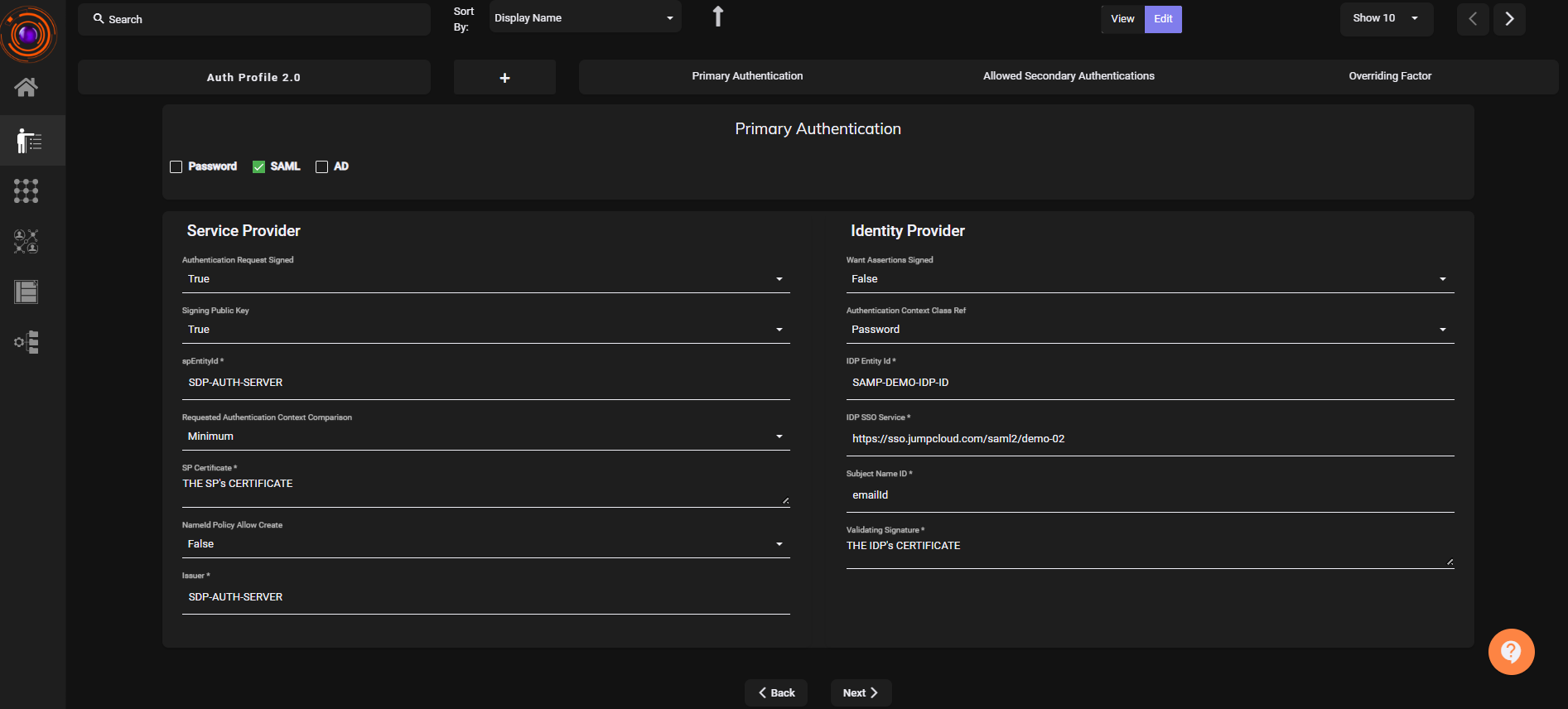

Select SAML as primary authentication. Fill the details.
- Paste the following details from Azure:
  - IDP Entity ID
  - SSO Login URL
  - Certificate (downloaded earlier)
  - Set Requested Authentication Context Comparison to Exact
  - Match Entity ID
Click Next. Save and complete the setup.
Go to User or User Group that were imported from Azure AD and add this Auth Profile to them.
